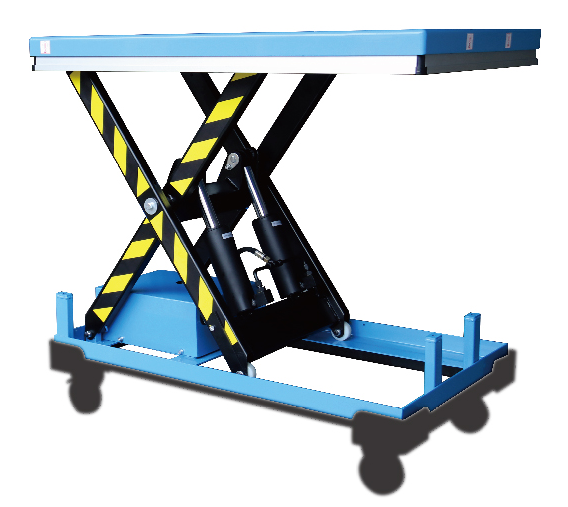

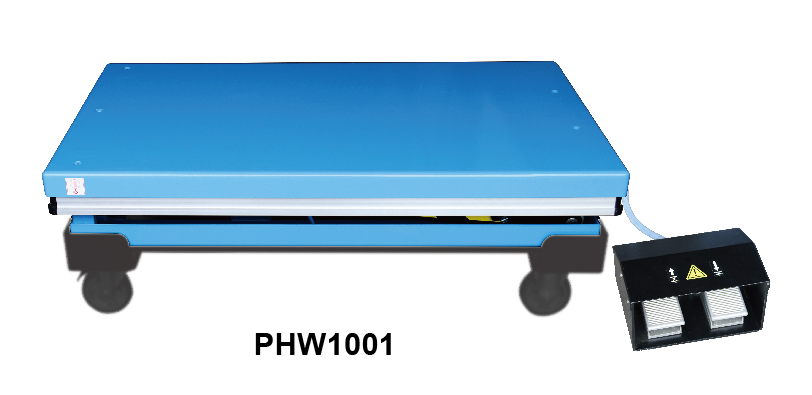

The PHW1001 Pneumatic Lift Table from the PHW series is a heavy-duty lifting solution designed for industrial applications. Powered by compressed air, this air-powered lift table delivers energy-efficient performance, making it ideal for warehouses, manufacturing plants, and assembly lines. With a 1000kg (2200lb) load capacity, it provides safe and reliable vertical lifting for pallets, machinery, and heavy materials.
मुख्य सुविधाहरू
100% Air-Powered Operation – No electricity required, eliminating explosion risks from sparks in hazardous environments like auto repair shops, flour mills, chemical plants, and oil & gas facilities.
Pneumatic Safety Design – Equipped with an internal brass velocity fuse, upper travel limit switch, and hinged maintenance prop for secure, reliable lifting.
Industrial-Grade Construction – Features precision pins & bearings, toe guards, and a two-button hand control for smooth, durable performance.
Technical Specifications
| निर्दिष्टीकरण | Metric (mm/kg) | Imperial (in./lb.) |
| Model Number | PHW1001 | PHW1001 |
| क्षमता | 1000 kg | 2200 lb |
| प्लेटफर्म आकार | 1300×820 mm | 51.2×32.3 in |
| Maximum Lift Height | 990 mm | 39 in |
| Minimum Lift Height | 205 mm | 8.1 in |
| समग्र आयाम | 1266×680 mm | 49.8×26.8 in |
| Lifting Time | 25±5 seconds | 25±5 seconds |
| Pneumatic Motor Power | 3 Kw | 3 Kw |
Why Choose Our Pneumatic Lift Table?
Explosion-Proof – Safe for ATEX zones, flammable dust areas, and volatile vapor environments where electric lifts are prohibited.
Low Maintenance – No motors or wiring to fail—just connect to compressed air for instant operation.
Versatile Applications – Ideal for automotive garages, food processing plants, grain silos, and industrial workshops.
Precision Control – Two-button hand control allows easy lifting/lowering with adjustable airflow for speed regulation.
Compare to Hydraulic/Electric Lifts
| Feature | PHW Pneumatic Lift | Electric Lift | Hydraulic Lift |
| Explosion Risk | ✅Zero (air-powered) | ⚠️ High (sparks) | ⚠️ Moderate (fluid leaks) |
| Maintenance | ✅ Minimal (no fluids/motors) | ❌ High (wiring/motors) | ❌ Moderate (seals/pumps) |
| Power Source | Compressed Air | Electricity | Hydraulic Pump |
| Ideal For | Flour mills, auto shops, chemical plants | Warehouses, factories | Heavy machinery |
