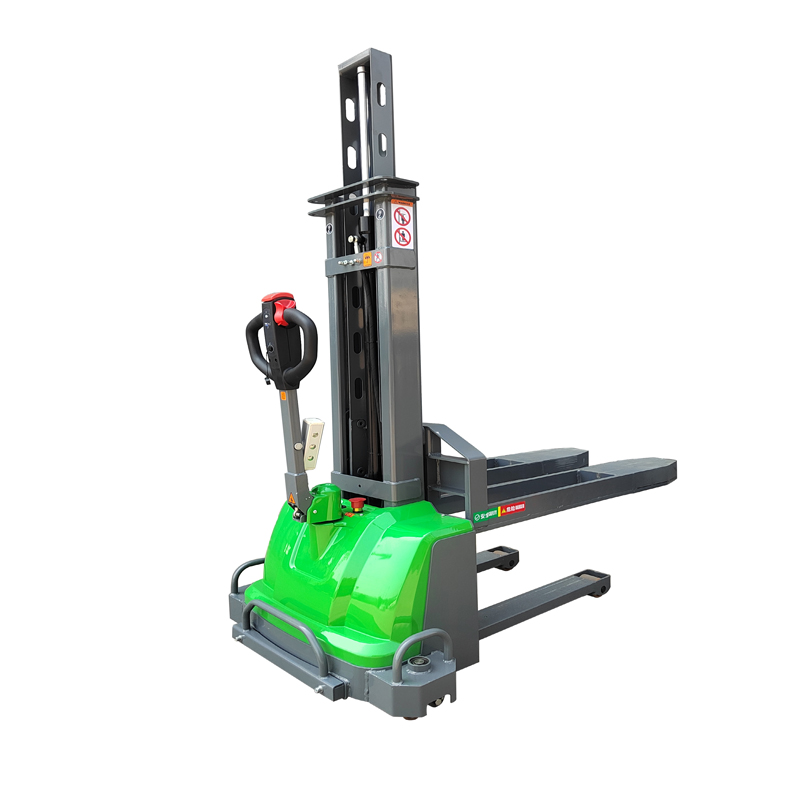

Full electric self-propelled Lifter FEYG

●Self-propelled lifter can transport with the goods in light to medium commercial vehicles

●Self -propelled lifter can lift itself into and out of the delivery vehicle.

●Self -propelled lifter quickly loads itself and the palletised cargo onto the van and unloads the van at the destination,leaving the driver to operate completely independently from the warehouse staff and all but eliminates manual loading and unloading.

●Self-propelled lifter could be used for following industries:

▲Car Manufacturers

▲Transport and Haulage

▲Warehousing

▲Civil Engineering Companies

▲Heating and Electrical Equipment Suppliers

▲Generator Power Systems

▲Exhibitions

▲Logistics

▲Furniture

▲Stone Masons

i-Lift No		1552201	1552202	1552203	1552204	1552205	1552206	1552207	1552208
मोडेल		FEYG1009	FEYG1011	FEYG1013	FEYG1015	FEYG1209	FEYG1211	FEYG1213	FEYG1215
Drive		Electric(battery)
Driving mode		Walking
Rated load Q	किलो (lb।)	1000(2200)				1200(2640)
लोड केन्द्र C	मिमी (in।)	400(15.7)
Wheels material		Polyurethane
Wheel size,drive wheel	मिमी (in।)	Φ190x70(7.5x2.8)
Wheel size,balancing wheel	मिमी (in।)	Φ75x35(3x1.4)
Wheel size,front wheel	मिमी (in।)	Φ80x70（3.1x2.8）
Max Fork Height h13	मिमी (in।)	900（35.4）	1100(44)	1300(51.2)	1500(59)	900(35.4)	1100(44)	1300(51.2)	1500(59)
Overall Height l1	मिमी (in।)	1250(49.2)	1450(57)	1650(65)	1850(72.8)	1250(49.2)	1450(57)	1650(65)	1850(72.8)
Maximum height of the entire vehicle during operation	मिमी (in।)	2480(97.6)	2680(105.5)	2880(113.4)	3080(121.3)	2480(97.6)	2680(105.5)	2880(113.4)	3080(121.3)
Min.fork height h13	मिमी (in।)	85(3.3)
Overall length l1	मिमी (in।)	1730(68.1)
Fork Size S/E/L	मिमी (in।)	60/195/1220(2.4/7.7/48)
Fork outer width b5	मिमी (in।)	560/600(22/23.6)
Ground clearance m2	मिमी (in।)	10(0.4)
Climbing ability,loading/unloading	%	3/5
ब्रेक		Electromagnetism
Drive motor power	किलोवाट	0.75
मोटर पावर उठाउँदै	किलोवाट	2
Li-ion Battery voltage/rated capacity	V / आह	48/25(Optional 30AH)
ब्याट्री तौल	किलो (lb।)	12(26.4)
Steering mode		Machinery
नेट वजन	किलो (lb।)	388(853.6)	395(869)	402(884.4)	408(897.6)	388(853.6)	395(869)	402(884.4)	408(897.6

Efficiency and convenience are at your fingertips with our state-of-the-art Full Electric Self-Propelled Lifter. Designed to revolutionize the way you handle your truck's cargo, this lifter is the ultimate companion for seamless loading and unloading operations.

मुख्य सुविधाहरू:

Electric Power: Our lifter is fully electric, providing a clean and quiet operation that is kind to the environment and your workforce.
Self-Propelled: Equipped with a self-propulsion system, it allows for easy movement around your warehouse or loading dock without the need for manual pushing.
Load and Unload with Ease: With its user-friendly controls and robust lifting mechanism, this lifter makes the process of loading and unloading a breeze, reducing the physical strain on your team.
Versatility: Suitable for a variety of truck sizes and cargo types, this lifter is designed to be a versatile asset in your logistics operations.
Safety First: Incorporating advanced safety features, including an emergency stop button and overload protection, ensuring the safety of your staff and the integrity of your cargo.
