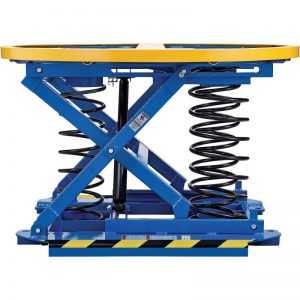

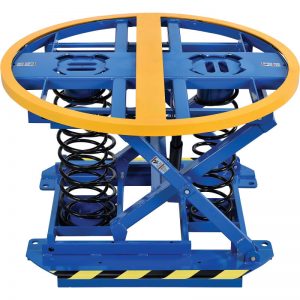

QSL1000 वसन्त लिफ्ट टेबल र QAL1000 द्रुत एयरब्याग लोडर

घुमाउने कार्य तालिकाको विशेषताहरू:

  • म्यानुअल लोडिङ र अनलोडिङको लागि आदर्श उचाइमा स्वचालित रूपमा लोड कायम राख्नुहोस्
  • कुनै विद्युत उर्जा आवश्यक छ
  • स्थिर डिजाइनको लागि कुनै फ्लोर लगि requires आवश्यक पर्दैन।
  • सानो आधारले कामहरूलाई कुनै पनि स्थितिमा औद्योगिक कैंची लिफ्टहरूको नजिक खडा हुन अनुमति दिन्छ।
  • फोर्कलिफ्ट बिना वैकल्पिक तालिका मूभरको साथ कुनै पनि स्थानमा सार्न सजिलो।

Compare with general lift tables, this QSL1000 series Spring Level Loader  and QAL1000 airbag pallet positioner  is a rotating lift table which can automatically maintain a load at the ideal height for manual loading and unloading without any electric or any manual operation, this lift table with rotate plate can automatically maintain at the top of the load as the working height to  reduce the discomfort of long-term bending just with the spring force of the spring/airbag and the gravity of the cargo.

भिडियो शो:





निर्दिष्टीकरणविवरणहरूDifference
  • i-Lift No13136011313604
    मोडेलQSL1000QAL1000
    क्षमताकिलो (lb।)200-2000(440-4400)100-2000(220-4400)
    संकुचित उचाईमिमी (in।)240(9.4)265(10.4)
    विस्तारित उचाईमिमी (in।)710(28)710(28)
    घुमाउने औंठी, बाहिरको दिया।मिमी (in।)1110(44)1110(44)
    घुमाउँदै अंगूठी, भित्र डाय।मिमी (in।)1035(40.7)1035(40.7)
    आधार फ्रेम लम्बाइमिमी (in।)1150(45.3)1150(45.3)
    आधार फ्रेम चौडाइमिमी (in।)930(36.6)930(36.6)
    विकल्पलिफ्ट टेबल मूभर

QAL1000 विवरण:

It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table

QSL1000 Details:

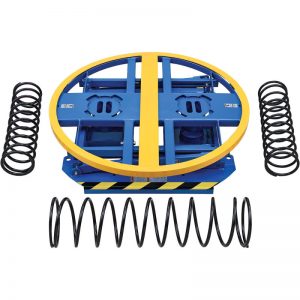

The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be  changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

यसले विभिन्न आकारका spr स्प्रि includesहरू समावेश गर्दछ, तपाईं क्षमता र उचाईको आधारमा स्वतन्त्र रूपमा समूहबद्ध गर्न सक्नुहुनेछ। फोर्कलिफ्ट "पकेट" द्वारा सुसज्जितले विभिन्न कार्य क्षेत्रहरू बीच यातायात सक्षम गर्दछ। "लिफ्ट टेबल माभर" क्षेत्रहरूका लागि पनि वैकल्पिक हो जुन फोर्कलिफ्ट अनुपलब्ध छ।

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.

मा के फरक छ एयरब्याग लोडर वा स्प्रिङ लोडेड कैंची लिफ्ट टेबल?

  • स्थिरता: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
  • विभिन्न गियर समायोजन विधिहरू: the Spring Pallet scissor Lift table  has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
  • लोड दायरा is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
  • विभिन्न समायोजन विधिहरू: it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner  needs to be removed from the table to replace the spring collocation to adjust the load.
  • एयरब्याग प्लेटफर्म सुसज्जित हुनुपर्छ हावा पम्प।

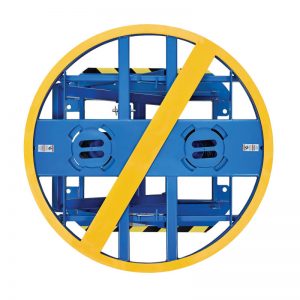

It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
